IRON GATE VALVES
CAST IRON /DUCTILE IRON GATE VALVES
Design Conforms to: BS5163,SABS664/665
Flanged Drilled Conforms to: BS4504 DIN2501
Test & Inspection: BS6755
Normal Pressure: 1.0Mpa,1.6Mpa,2.5Mpa
Suitable Medium: Water, Neutral liquid
Working Temperature: NBR≤80℃,EPDM≤120℃
Operator: Handwheel,Nut,Extension stem,Gear Operator
Technical Specifications:
| No. | Part | Material | |||
| 1 | Body | DI/WCB/GGG40/GGG25 | |||
| 2 | Wedge | DI+EPDM/GGG40/NBR/EPDM | |||
| 3 | Stem | 2Cr13/SS420/SS304 | |||
| 4 | Bonnet | DI/GGG40/ | |||
| 5 | O Ring | EPDM/NBR | |||
| 6 | Hand wheel | DI/CAST IRON | |||

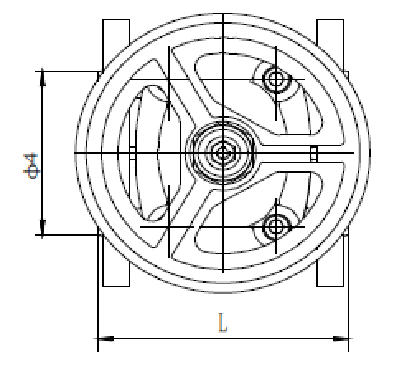

Dimensions(mm):
| Size | L | H | φ1 | φ2 | φ4 | PN10 | PN16 | KG/PC | ||
| φ3 | n-φ | φ3 | n-φ | |||||||
| 50 | 150 | 310 | 180 | 165 | 102 | 125 | 4-18 | 125 | 4-18 | 7.5 |
| 65 | 170 | 330 | 200 | 185 | 122 | 145 | 4-18 | 145 | 4-18 | 8.7 |
| 80 | 180 | 365 | 220 | 200 | 133 | 160 | 8-18 | 160 | 8-18 | 11.0 |
| 100 | 190 | 425 | 240 | 220 | 158 | 180 | 8-18 | 180 | 8-18 | 13.0 |
| 125 | 200 | 490 | 260 | 250 | 188 | 210 | 8-18 | 210 | 8-18 | 18.0 |
| 150 | 210 | 540 | 260 | 285 | 212 | 240 | 8-23 | 240 | 8-23 | 25.0 |
| 200 | 230 | 665 | 280 | 340 | 268 | 295 | 8-23 | 295 | 8-23 | 34.0 |
| 250 | 250 | 792 | 320 | 405 | 320 | 350 | 12-22 | 355 | 12-26 | 60.0 |
| 300 | 270 | 897 | 350 | 460 | 370/378 | 400 | 12-22 | 410 | 12-26 | 83.0 |
| 350 | 290 | 1100 | 460 | 520 | 430/438 | 460 | 16-22 | 470 | 16-26 | |
| 400 | 310 | 1200 | 500 | 580 | 482/490 | 515 | 16-26 | 525 | 16-30 | |
| 500 | 350 | 1480 | 550 | 715 | 585/610 | 620 | 20-26 | 650 | 20-33 | |
| 600 | 390 | 1608 | 550 | 840 | 685/725 | 725 | 20-30 | 770 | 20-36 | |
