BUTTERFLY VALVES

首页>PRODUCT>VALVES>BUTTERFLY VALVES

DOUBLE FLANGE CENTRELINE BUTTERFLY VALVE

Material: Cast Iron

Type: Manual,pneumatic,motor,hydro-dynamic,etc.

Connection: Double flange

Pressure: PN6, PN10,PN16

Size: 2”-48”

Description:

1.Design confirms to:DIN,BS,ANSI

2.Flanged drilled confirms to:DIN,BS,ANSI JIS 10K

3.Normal pressure:0.6MPa,1.0MPa,1.6MPa

4.Suitable medium:water,gas,oil product natural gas and corrosive mediums as acids,alkalis,etc.

5.Working Temperature:NBR≤80℃,EPDM≤120℃

6.Operator:manual,pneumatic,motor,hydro-dynamic,etc.

Technical Specifications:

No.	Part	Material
1	Body	Cast Iron/Ductile Iron/Carbon Steel
2	Bush	Brass/Teflon
3	Seat	EPDM/NBR/VITON
4	Disc	DI/CI/CF8M/AL Bronze
5	Stem	SS416/SS304/SS316
6	Pin	SS416/SS316
7	BUSH	BRASS/PTFE
8	O Ring	NBR/EPDM

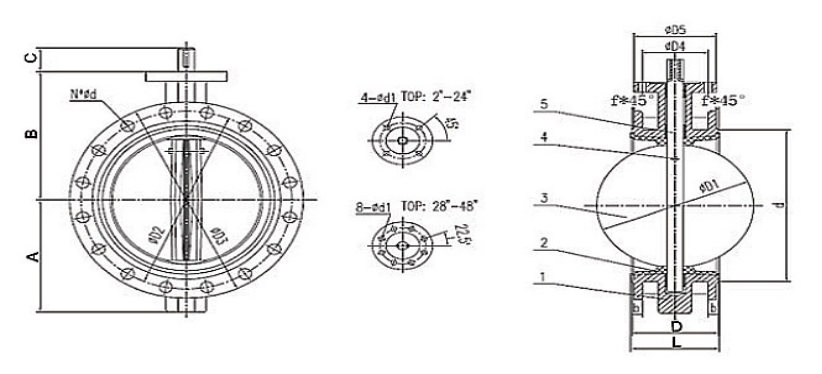

Dimension(mm):

DN	ΦD1	ΦD2		ΦD3		ΦD4	ΦD5	n-φd		A	B	C	D	L	b	d	f	φd1	Weight (kg)
DN	ΦD1	1.0Mpa	1.6Mpa	1.0Mpa	1.6Mpa	ΦD4	ΦD5	1.0Mpa	1.6Mpa	A	B	C	D	L	b	d	f	φd1	1.0Mpa	1.6Mpa
50	52.6	125	125	165	165	50	65	4-18	4-18	83	120	32	108	111	20	99	3	7	7.6	7.6
65	64.3	145	145	185	185	50	65	4-18	4-18	93	130	32	112	115	20	118	3	7	9.7	9.7
80	78.8	160	160	200	200	50	65	8-18	8-18	100	145	32	114	117	22	132	3	7	10.6	10.6
100	104	180	180	220	220	70	90	8-18	8-18	114	155	32	127	130	24	156	3	10	13.8	13.8
125	123	210	210	250	250	70	90	8-18	8-18	125	170	32	140	143	26	184	3	10	18.2	18.2
150	156	240	240	285	285	70	90	8-22	8-22	143	190	32	140	143	26	211	3	10	21.7	21.7
200	202	295	295	340	340	102	125	8-22	12-22	170	205	45	152	155	26	266	3	12	31.8	34.6
250	250	350	355	395	405	102	125	12-22	12-26	198	235	45	165	168	28	319	3	12	44.7	51.1
300	302	400	410	445	460	102	125	12-22	12-26	223	280	45	178	182	28	370	4	12	57.9	66.8
350	333	460	470	505	520	102	125	16-22	16-26	270	31	45	190	194	30	429	4	12	81.6	107
400	390	515	525	565	580	140	175	16-26	16-30	300	340	51	216	221	32	480	4	18	106	139
450	441	565	585	615	640	140	175	20-26	20-30	340	375	51	222	227	32	530	4	18	147	190
500	492	620	650	670	715	140	175	20-26	20-33	355	430	57	229	234	34	582	4	18	168	232
600	593	725	770	780	840	165	210	20-30	20-36	410	500	70	267	272	36	682	5	22	235	350
700	695	840	840	895	910	254	300	24-30	24-36	478	560	66	292	299	40	794	5	18	238	442
800	795	950	950	1015	1025	254	300	24-33	24-39	529	620	66	318	325	44	901	5	18	475	590
900	865	1050	1050	1115	1125	254	300	28-33	28-39	584	665	118	330	337	46	1001	5	18	595	746
1000	965	1160	1170	1230	1255	254	300	28-36	28-42	657	735	142	410	417	50	1112	5	18	794	976
1200	1161	1380	1390	1455	1485	298	350	32-39	32-48	799	917	150	470	478	56	1328	5	22	1290	1540
