PTFE PRODUCTS

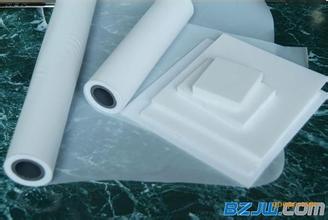

PTFE SKIVED SHEETS
Characteristic: excellent dielectric properties, aging, the best chemical
resistance and a broad range of applications.
Usage: used as seals and lubrication liner material in working
medium dielectric at any frequencies. Capacitor dielectric,
wire insulation,electrical insulation.
Technical Data:
| Project Name | Unit | Indicators | |
| Domestic feed production | Imported materials production | ||
| Apparent density | g/cm3 | 2.10～2.30 | 2.10～2.30 |
| Tensile strength≥ | Mpa | 20 | 28 |
| Elongation≥ | % | 250 | 300 |
| Withstanding Voltage≥ | Kv/mm | 10 | 12 |
Size:
| Item | Size | |||||
| Wide | 300 | 600 | 100 | 1200 | 1500 | 2000 |
| Thickness | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.5-0.6 | 1.0-6.0 |
| Tolerance | 0-0.1 | 0-0.1 | 0-0.1 | 0-0.1 | 0-0.1 | 0-0.1 |
| Length | 10/15/20 | 10/15/20 | 10/15/20 | 10/15/20 | 10/15/20 | 10/15/20 |
