CHECK VALVES
SINGLE PLATE CHECK VALVE
Inspection & Test Standard: EN12266-1
End Standard: PN10/PN16
Test Pressure: Shell Test: 2.4Mpa
Seal Test: 1.76Mpa

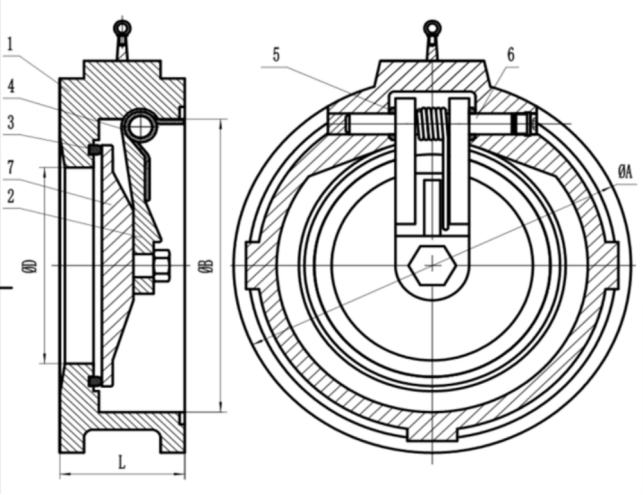

Technical Specifications:
| No. | Name | Material | ||
| 1 | Body | DI | ||
| 2 | Support | SS304 | ||
| 3 | O-ring | TEFLON | ||
| 4 | Spring | SS304 | ||
| 5 | Gaskte | NBR | ||
| 6 | Shaft | SS420 | ||
| 7 | Plate | CF8 | ||
Dimensions(mm):
| Size | ΦA±1 | ΦB±1 | ΦD±1 | L±1 | ||||
| 2" | 107 | 58 | 31 | 44.5 | ||||
| 2 1/2" | 127 | 70 | 40 | 47.6 | ||||
| 3" | 142 | 80 | 50 | 50.8 | ||||
| 4" | 162 | 108 | 73 | 57.2 | ||||
| 5" | 192 | 138 | 89 | 63.5 | ||||
| 6" | 218 | 155 | 114 | 69.2 | ||||
| 8" | 273 | 208 | 155 | 73.0 | ||||
| 10" | 328 | 256 | 188 | 79.4 | ||||
| 12" | 378 | 284 | 235 | 85.7 | ||||
| 14" | 438 | 360 | 267 | 108.0 | ||||
| 16" | 489 | 410 | 318 | 108.0 | ||||
| 18" | 539 | 460 | 356 | 108.0 | ||||
| 20" | 594 | 530 | 387 | 140.0 | ||||
| 24" | 695 | 610 | 483 | 152.0 | ||||
