CHECK VALVES
SILENCING CHECK VALVE
Pressure level: 1.6Mpa
Working pressure: 1.0
Strength: 1.5
Seal: 1.1
Applicable temperature: 0-80℃
Applicable media: Water

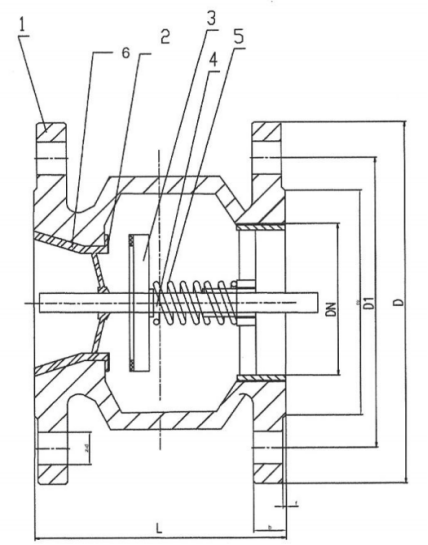

Technical Specifications:
| SIZE | L | D | D1 | n-d | b | f |
| DN50 | 120 | 160 | 125 | 4-18 | 16 | 2 |
| DN65 | 135 | 180 | 145 | 4-18 | 16 | 2 |
| DN80 | 155 | 195 | 160 | 8-18 | 17 | 2 |
| DN100 | 165 | 215 | 180 | 8-18 | 19 | 2 |
| DN150 | 210 | 280 | 240 | 8-23 | 19 | 2.5 |
| DN200 | 260 | 335 | 295 | 12-23 | 20 | 3 |
| DN250 | 270 | 405 | 355 | 12-25 | 23 | 3 |
| DN300 | 320 | 460 | 410 | 12-25 | 25 | 3 |
