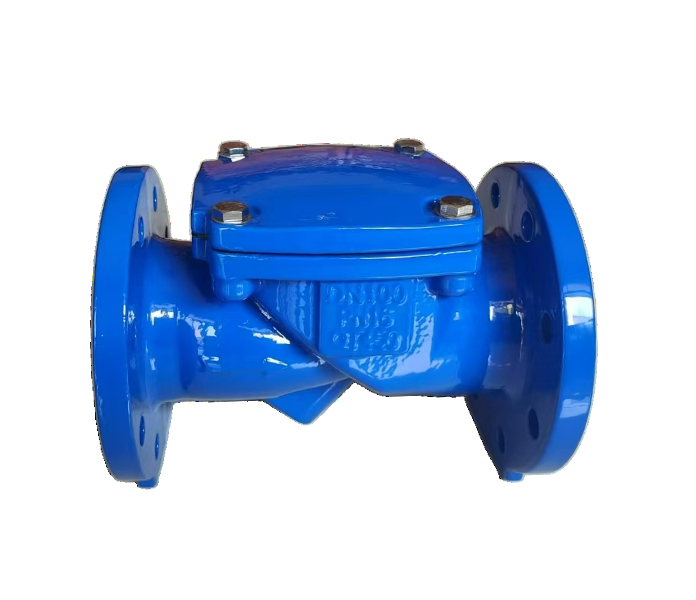

Pressure level: 1.6Mpa

Working pressure: 1.0

Strength: 1.5

Seal: 1.1

Applicable temperature: 0-80℃

Applicable media: Water

Inspection & Test Standard: EN12266-1

End Standard: PN10/PN16

Test Pressure: Shell Test: 2.4Mpa

                        Seal Test: 1.76Mpa

Nominal Dia: DN50-DN600

Nominal Pressure: PN10&PN16

Valve design Standard: BS5153

Fave to face Standard: EN558 & ISO5752 series-10

Flange Standard Conformity: EN1092-2

Testing Standard: EN12266-1

Epoxy Coating: Epoxy powder coating RAL5005 with minimum thickness of 250 microns inside and outside.

Testing Pressure: Shell Test: 24Bar(1.5times  ×PN)

                             Sealing Test: 1.76Bar(1.1times  ×PN)

Working Temperature(Max): 120℃

Type:                      Wafer type

Size:                       2”-24”

Work Temperature:- 30℃  -130℃

Suitable Medium:    Water, Steam,Non abbressive fluids
